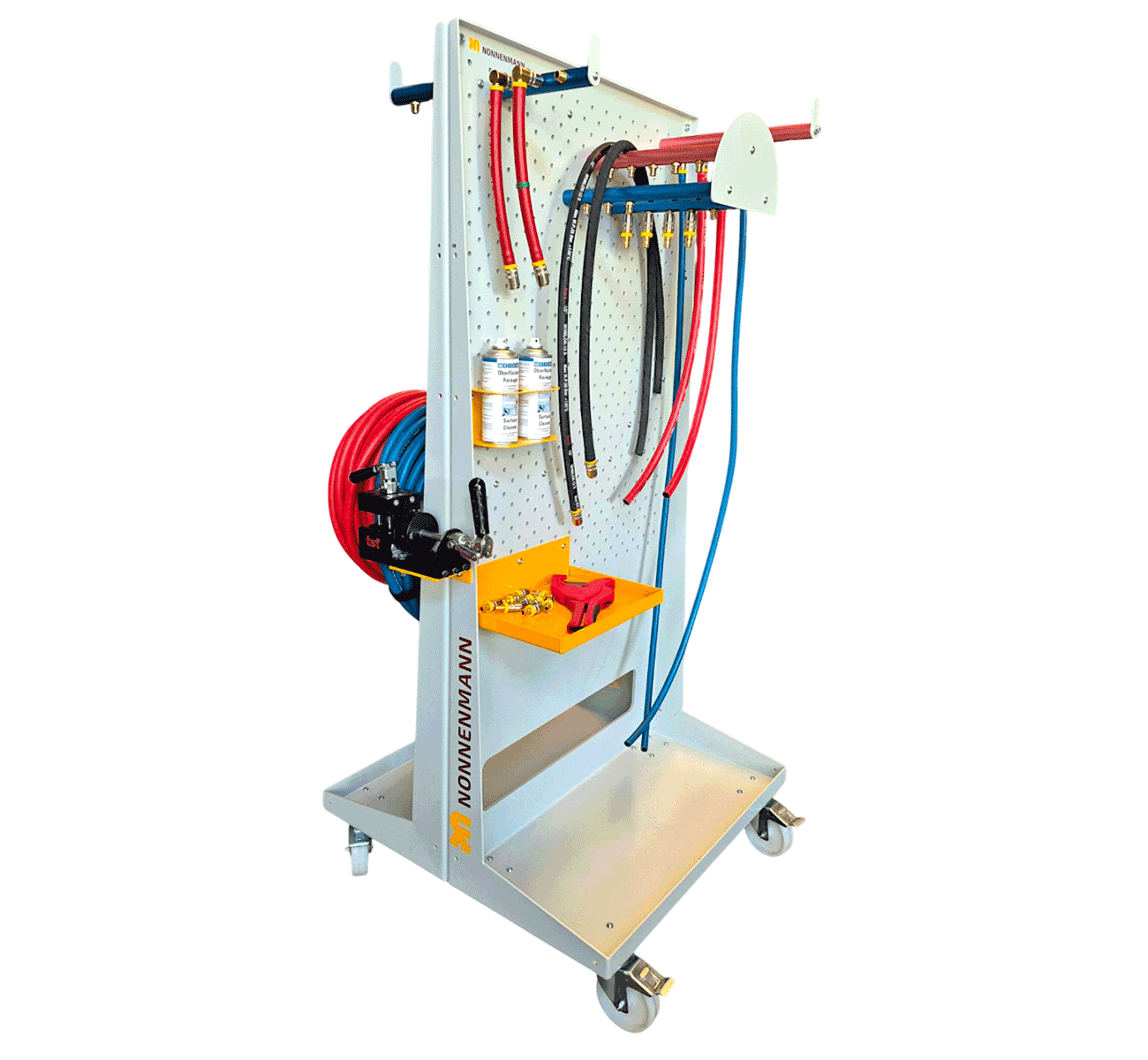

HOSE TROLLEY
More order, cleanliness and safety in maintenance and production
With our hose trolley, you can store individual hoses or entire hose reels neatly in your production hall. The trolley is mobile and can be stationed as a setup trolley at injection molding machines.
Residual water or thermal oil from the hoses is collected by an integrated tray at the bottom of the trolley, protecting the hall floor from contamination. You can configure the trolley as desired and attach support rods, shelves, can holders, or our hose assembly device.

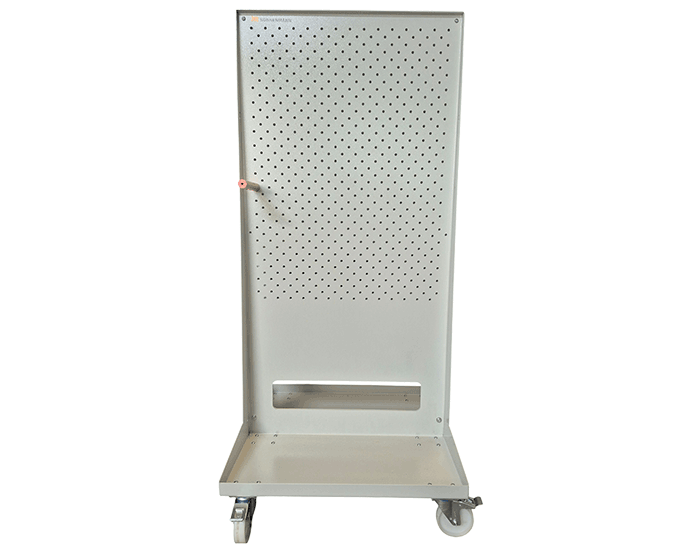

BASIC VERSION OF THE HOSE TROLLEY
The basic version of the hose trolley (Article No: WA3000) includes a robust perforated sheet metal (Ø9mm) and a practical drip tray. You can customize the hose trolley and expand it with various accessories.
Material and color
Steel sheet, powder-coated RAL 7035 light gray
Steel sheet, powder-coated RAL 7035 light gray
Dimensions (LxWxH)
800x800x1750 mm
800x800x1750 mm
Weight
112 kg
112 kg
Load capacity
100 kg
100 kg
Drip tray
to protect the hall floor from contamination by residual water or thermal oil
to protect the hall floor from contamination by residual water or thermal oil
Perforated sheet metal
for easy mounting of support rods, shelves, and can holders
for easy mounting of support rods, shelves, and can holders

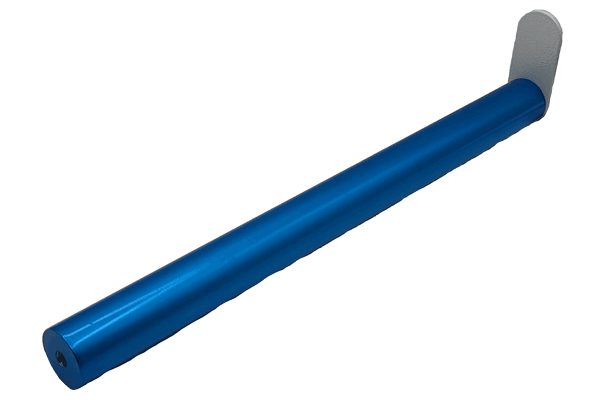

Mounting bars
Lengths and colors
200mm and 350mm, blue and red
200mm and 350mm, blue and red

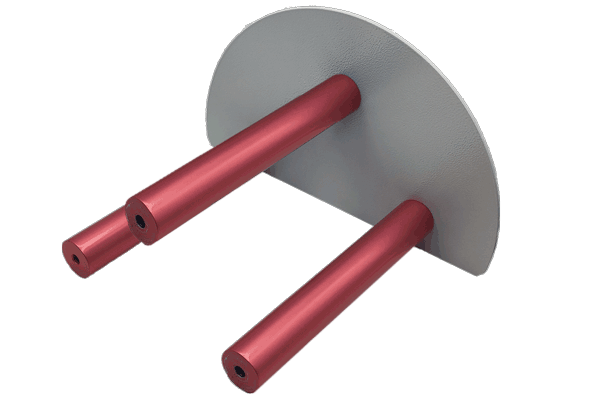

Mounting bar set
Lengths and colors
200mm and 350mm, blue and red
200mm and 350mm, blue and red

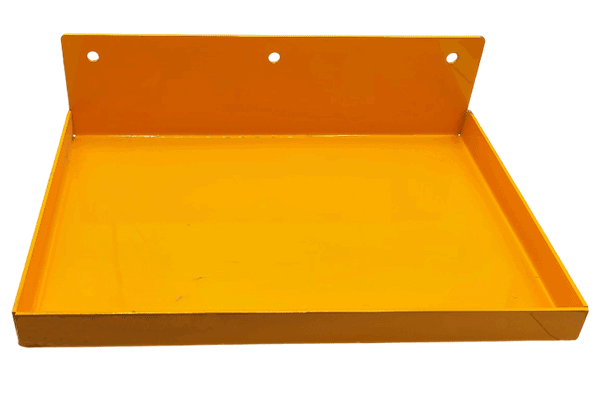

Storage compartment
LxBxH
350x250x100mm
350x250x100mm

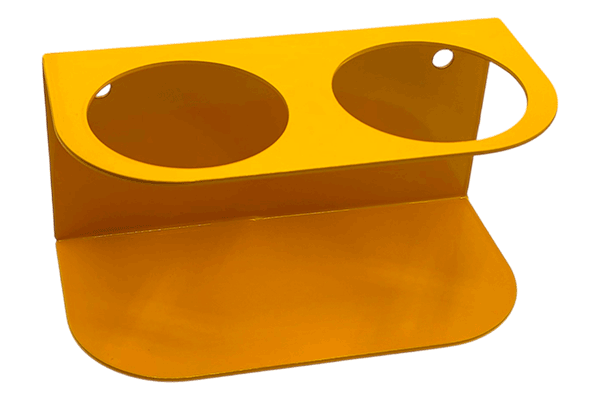

Can holder
LxBxH
195x100x100mm
195x100x100mm

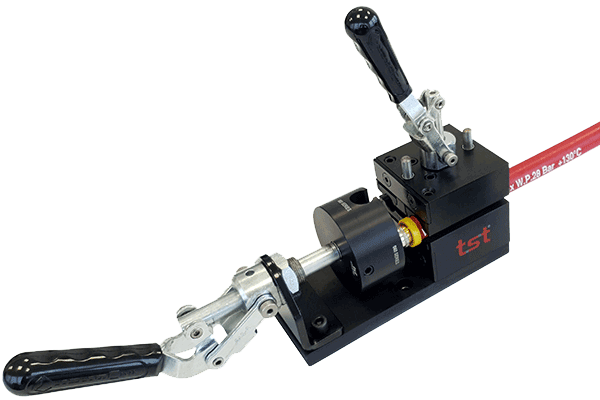

Hose mounting device HTA
Couplings can be easily mounted
on elastomer hoses
on elastomer hoses

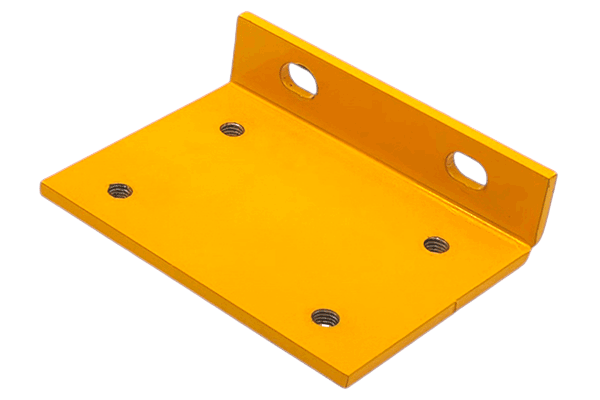

Mounting bracket for HTA
LxBxH
120x90x30mm
120x90x30mm
Greater efficiency thanks to modular hose carts
Individually configurable to your needs
With the hose trolley, you can shorten your paths, save time, reduce the risk of accidents, avoid damage to hoses, and increase your process reliability.
