Heat insulation plates

Reduce heat losses - increase energy efficiency and occupational safety!

Complete machining according to design data

Individually processed heat insulation panels from NONNENMANN as an extended workbench - simple, clean, fast and safe.
Our thermal insulation panels are suitable for insulation in tool and mould making and plastic/rubber processing
Avoid dust and dirt in your production and purchase the heat insulation panels from us, processed ready for installation according to your specifications
Standard thickness (mm): 5, 6, 7, 8, 8.5, 10
Parallelism: 0.05 mm (on request depending on dimensions/requirements ground up to 0.03 mm)
On request with coating (black) against the penetration of water vapor possible
Our portfolio includes various types of heat insulation plates with different properties depending on the installation and intended use: Product Information Heat Insulation Plates.
Heat insulation plate White heat insulation plate

From standard applications to high demands

GU-200, G-60/1600 and G-250
Our standard insulation boards are suitable for classic applications, e.g. for insulation between mold clamping plate and injection molding machine
G-60/1600:
Compressive strength at 23°C: 600 N/mm² and at 200°C: 280 N/mm²
Temperature resistance permanent: 210°C / temporary: 220°C
Thermal conductivity: 0.3 W/mK
Further properties can be found in the Product Information Heat Insulation Plates.
The G-250 convinces with high compressive strength and can also be installed inside the mold, e.g. for thermal separation of the mold cavities from the rest of the mold structure:
Compressive strength at 23°C: 650 N/mm² and at 200°C: 450 N/mm²
Temperature resistance permanent: 250°C / short-term: 280°C
Thermal conductivity: 0.25 W/mK
Further properties can be found in the Product Information Heat Insulation Plates.
Other heat insulation plate Insulation plates in mold

External insulation

G-4000 and G-4000A
For the external insulation of the tools, insulating boards are used, which do not have to have high compressive strength, but have a very low thermal conductivity and thus better insulating properties
Suitable for applications in the high temperature range and for industrial safety as contact protection, e.g. for molds with inserts
G-4000:
Compressive strength at 23°C: 320 N/mm² and at 200°C: 110 N/mm²
Temperature resistance permanent: 200°C / short term: 250°C
Thermal conductivity: 0.12 W/mK
Further properties can be found in the Product Information Heat Insulation Plates.

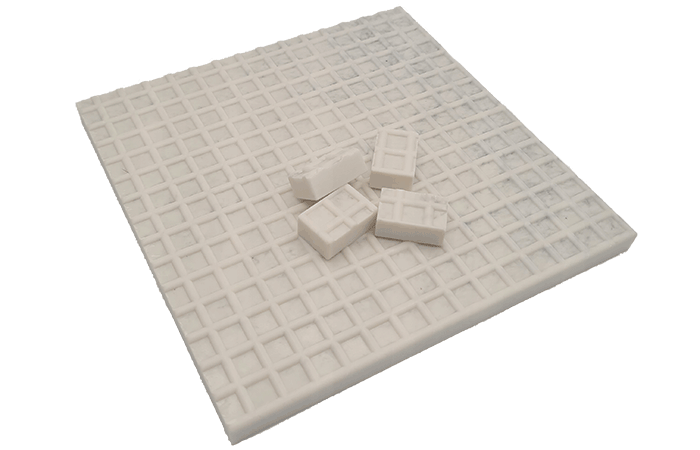

The G-4000A is equipped with a honeycomb structure, which forms an air cushion on the mold side and improves the insulating properties:
Compressive strength at 23°C: 100 N/mm² and at 200°C: 80 N/mm²
Temperature resistance permanent: 200°C / short term: 250°C
Thermal conductivity: 0.09 W/mK
Further properties can be found in the Product Information Heat Insulation Plates.
G-4000 in mold Insulation plate G-4000A

CONTACT US NOW

Benefit from the advantages of individually processed heat insulation plates
