WATER BATTERIES
Water flow controllers for injection molding production

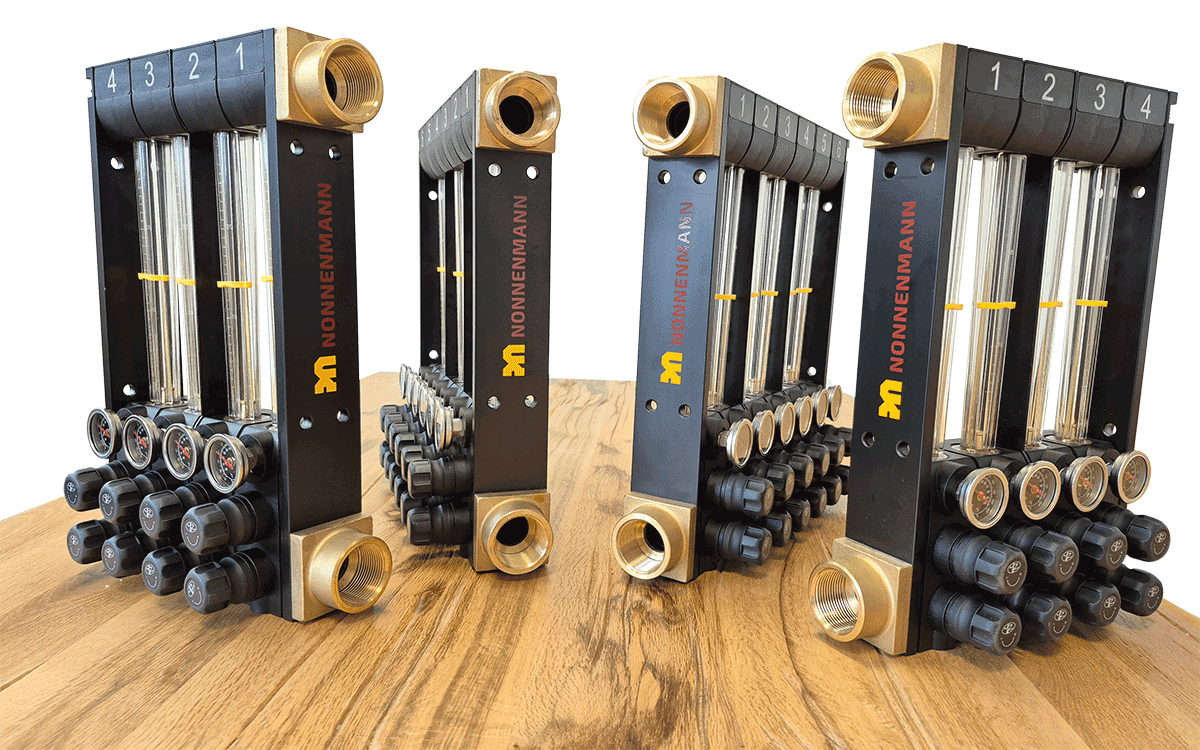

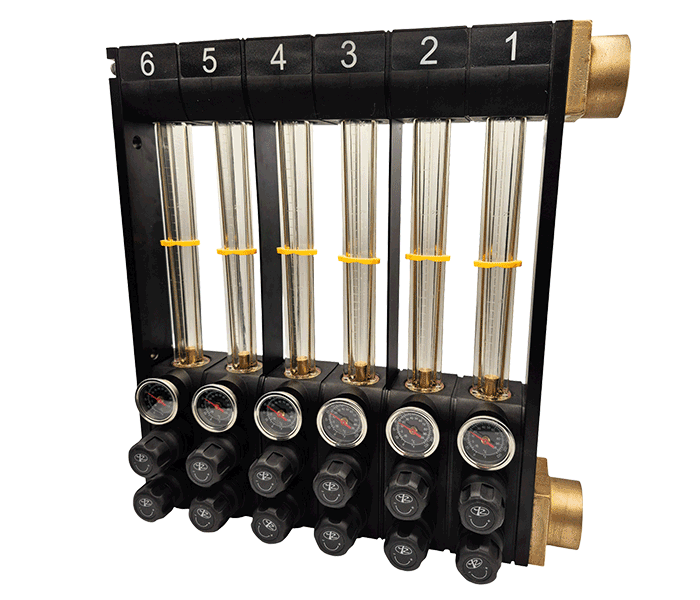

Our water batteries with thermometers enable visual flow indication and manual flow control for each individual temperature control circuit of the mold during ongoing production.
We offer water batteries with a main connection thread of 1¼" optionally on the left or right side and with two to twelve circuits. They can be used at a water temperature of up to 100°C and a maximum flow rate of 30 l/min per circuit.
TECHNICAL DATA
As a combination of visual flow indication, manual flow control, and thermometer, the water battery is an essential component in the process chain for effective and efficient mold temperature control.
Max. flow rate per circuit
30 l/min
30 l/min
Max. pressure and max. temperature
10 bar (40°C) / 4 bar (100°C)
10 bar (40°C) / 4 bar (100°C)
Circuits
2 to 12 depending on variant
2 to 12 depending on variant
Position main connection
left or right depending on variant
left or right depending on variant
Input thread
G 3/8"
G 3/8"
Output thread
G 1 1/4"
G 1 1/4"
