Tempering connection plates
Reduce setup times. Lower costs.
We provide standardized plates for the organized connection of tempering in the area of the injection molding machine. Depending on the variant, these are suitable for a different number of tempering circuits or the use of multi-couplings.

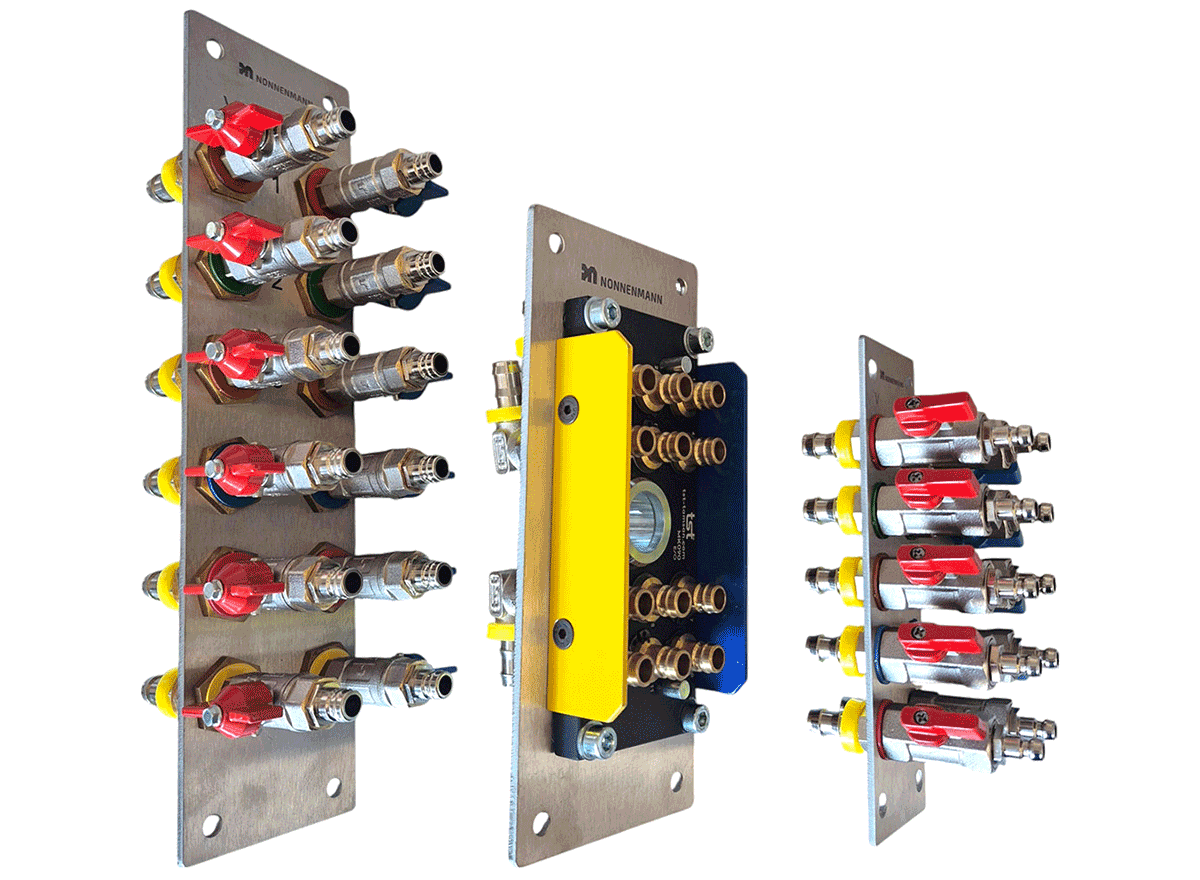

The plates can be ordered individually as blanks or fully equipped and pre-assembled using our configurator with various selectable accessories and connection components.
Standardized interface between tempering and tools

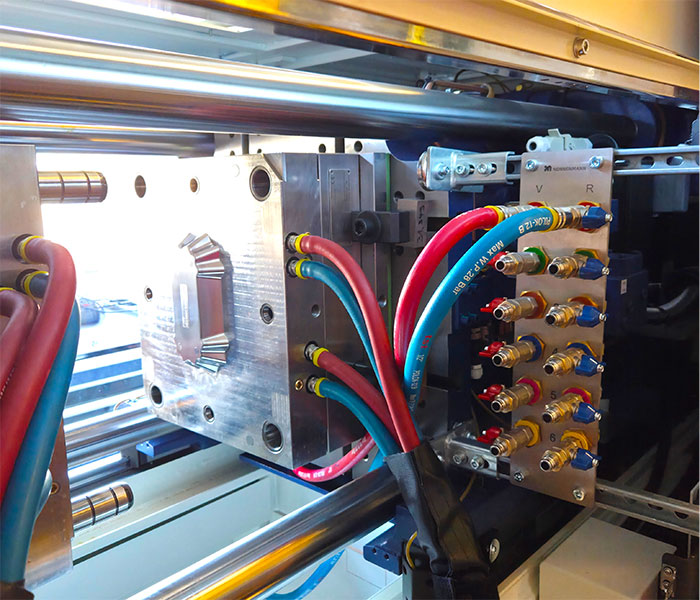

The tempering connection plate can be used directly on the injection molding machine, e.g., on the machine clamping plates, enabling a tool-near connection. It serves as an interface between the tools and the piping, which is supplied from the main water supply or the tempering unit.
Reduction of setup times
Faster and easier assembly
Faster and easier assembly
Higher process reliability
Fewer sources of error through more structure
Fewer sources of error through more structure
HHigher work safety
Better accessibility, fewer tripping hazards
Better accessibility, fewer tripping hazards
Lower costs
ROI less than 1 year due to time savings and fewer errors
ROI less than 1 year due to time savings and fewer errors

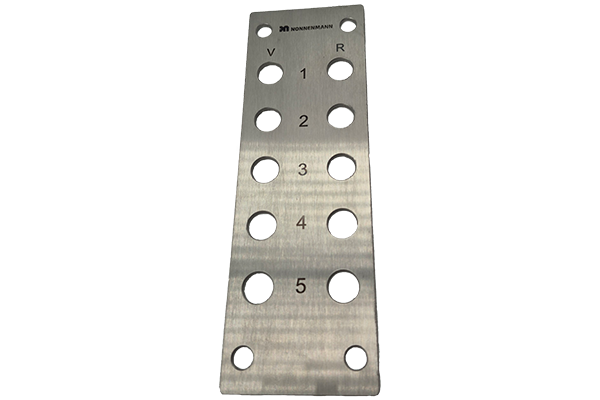

TA-Plate VA K5 G1/4"
Dimensions
210x70x3mm
210x70x3mm
Circuits
5
5

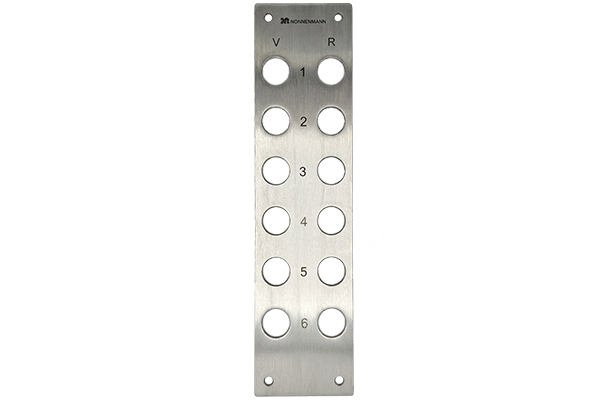

TA-Plate VA K6 G3/8"
Dimensions
390x100x4mm
390x100x4mm
Circuits
6
6

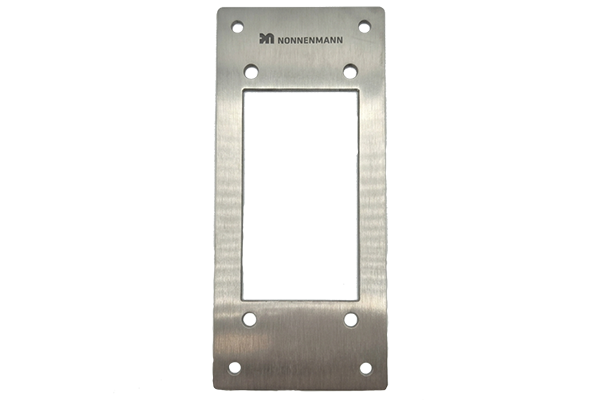

TA-Plate VA K6 MK
Dimensions
270x120x4mm
270x120x4mm
Circuits
6 (Multi coupling)
6 (Multi coupling)
Configurator for Tempering Connection Plates
Standardized plates, individually equipped
Configure your assembled connection plate in just one minute and benefit from reduced setup times, higher process reliability, and lower costs.
